CORE CUTTERS

We design and build core cutters in versions from entry level to high end (highly automated), including ones equipped with a system for individual marking of cut cores.

  • Core cutter CATER-A

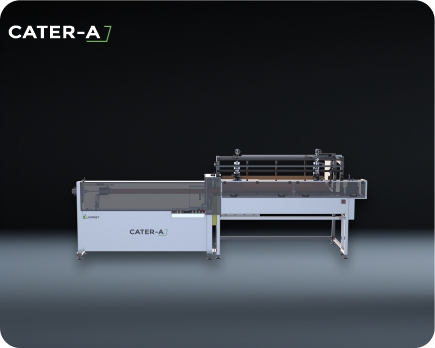

    Core cutter CATER-A

    Technical data
    Max. parent core length: 2000/2500/3000/3500mm (78.7"/98.4"/118.1"/137.8")
    Range of core inside diameter: 1" - 8”
    Wall thickness: 18mm (0.7")
    Available equipment
    • Guides for cores with an internal diameter from 1" to 8" (e.g. 1", 70mm, 76mm, 152mm, 8")
    • Other sizes between 1" and 8" - on request
    More
  • Core cutter CATER-d

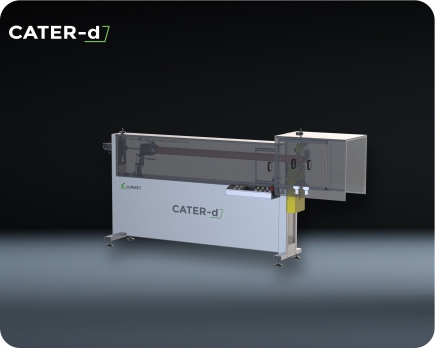

    Core cutter CATER-d

    Technical data
    Max. parent core length: 2000/2500/3000/3500/4200mm (78.7"/98.4"/118.1"/137.8"/165.4")
    Range of core inside diameter: 1" - 8”
    Wall thickness: 18mm (0.7")
    Available equipment
    • Guides for cores with an inside diameter from 1" to 8" (e.g. 3", 6")
    • Other sizes between 1" and 8" - on request
    More
  • Core cutter CATER-S

    Core cutter CATER-S

    Technical data
    Max. parent core length: 2000/2540/3000mm (78.7"/100"/118.1')
    Range of core inside diameter: 1" - 10"
    Wall thickness: 18mm (0.7")
    Available equipment
    • Guides for cores with an inside diameter from 1" to 10" (e.g. 3", 6")
    • Other sizes between 1" and 10" - on request
    More
  • Core cutter CATER-M

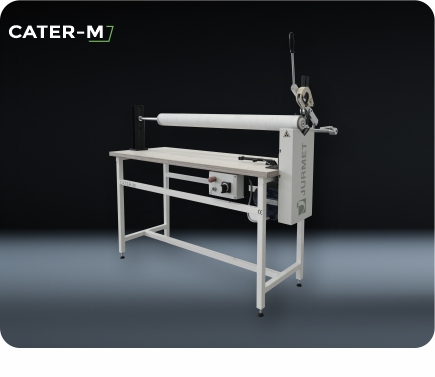

    Core cutter CATER-M

    Technical data

    Max. parent core length: 1600/2000/2540/3000mm (63"/78.7"/100"/118.1")
    Range of core inside diameter: 1" - 6"
    Wall thickness: 18mm (0.7")

    Available equipment
    • Guides for cores with an inside diameter from 1" to 6" (e.g. 3", 6")
    • Other sizes between 1" and 6" - on request
    More
