MASTER

MASTER slitter ensures complete control of the cutting process and allows to store and automatically recall repetitive jobs.

  • 1000-2200mm (39.4"-86.6")
    Web width
  • 1100/1500mm (43.3"/59.1")
    Unwind roll diameter
  • 610-1000mm (24"-39.4")
    Max. rewind diameter
  • 700m/min. (2297 ft/min.)
    Speed

MASTER

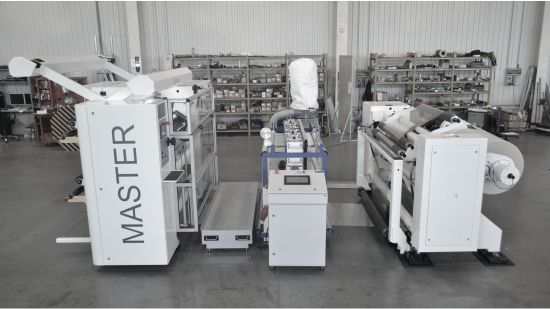

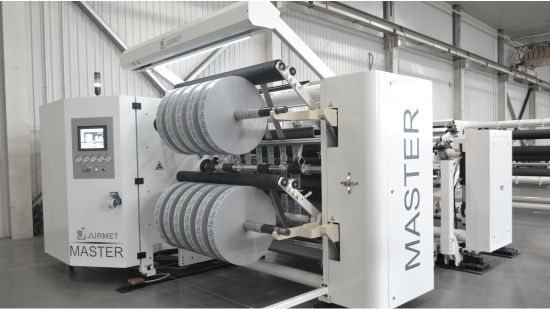

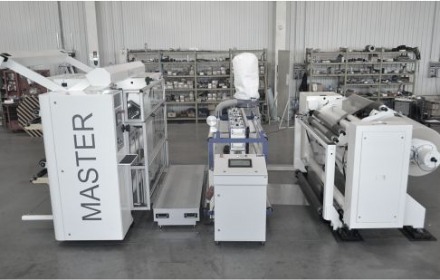

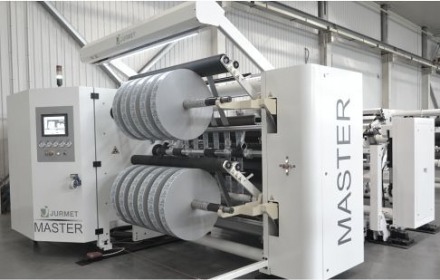

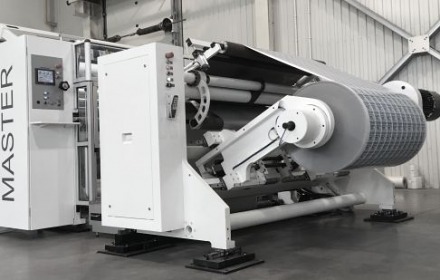

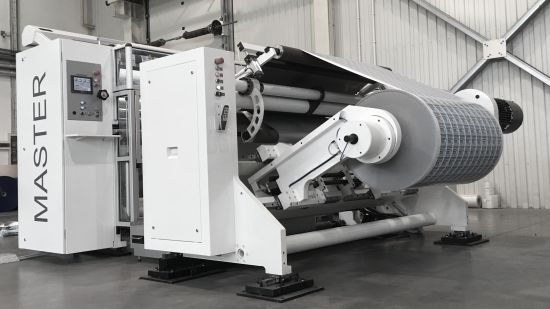

MASTER - duplex slitter with separate unwinder

MASTER slitter ensures a total control of slitting process. Data regarding slitting of various materials is stored and automatically recalled in case of repeated jobs. The software of the slitter is designed to set various tensions easily on different sections of the slitter. In addition, the system identifies possible problems, advices about methods of solving problems, informs about maintained jobs and stores information concerning job of the slitter. Down run of material allows placing additional modules such as a laser to cut between unwind and rewind. The customer focused on innovations can optimally use advantages of modular construction.

TECHNICAL DATA

Width of material
1000/1300/1600/1850/2000/2200mm (39.4"/51.2"/63"/72.8"/78.7"/86.6")
Unwind diameter
1100/1300/1500mm (43.3"/51.2"/59.1")
Rewind diameter
610/800/1000mm (24"/31.5"/39.4")
Max. mechanical speed
700m/min. (2297 ft/min.)
Weight of parent roll
max. 2500 kg (5512 lbs)
Min. slitting width
25mm/1" (50mm/2" as standard)
Core ID
70mm, 3”, 120mm, 150mm, 6”
Converted material
printed / unprinted foils (PE,PP,PA,PS,PET and other), paper, metalised films, laminates, labelstock films, alu films, non-woven.
Application
packaging for food industry, flexo printing houses, health care materials and pharma materials

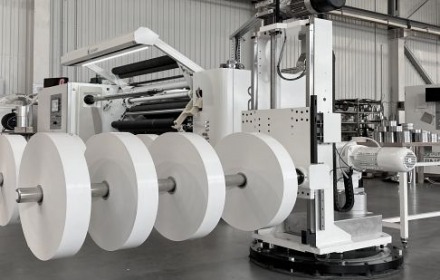

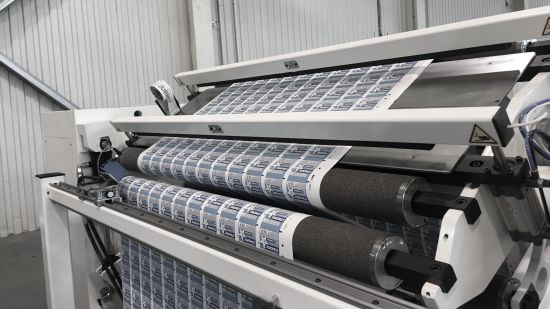

Gallery
